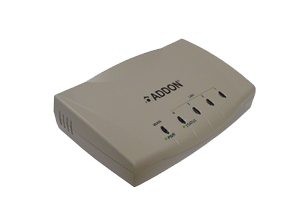

BR4000
(*Subject to change without notice.)
ADD-BR4000 is a full-featured broadband router that establishes with connection to local area network or individual PC with build-in 4-port Switch. BR4000 uses advanced WavePlus broadband router solution provides complete set of industry standard features for high-speed Internet access. BR4000 offers easy installation and cost-effective connection for corporate, SOHO and residential users.
Specification:
| Data Transfer Rates |
WAN to LAN : up to 90Mbps, LAN to LAN : 100Mbps |
| Standard |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-Tx, RFC 2516 (PPP over Ethernet) |
| Bridging |
IEEE 802.1x |
| Routing |
Static Routing |
| NAT (Network Address Translation) |
| NAPT (Network Address and Port Translation) |
| DHCP (Dynamic Host Configuration Protocol) Server/Client |
| Security & Management |
Clone MAC |
| Supports DDNS |
| Configuration of NAT/NAPT |
| Supports Virtual Server and Virtual DMZ |
| Provides MAC filter, Client filter, and URL/IP filter |
| WAN, LAN, DMZ and AP statistics |
| Restore to Factory Default |
| System Log |
| UPnP, ALG and Help |
| Software Upgrade through Web |
| Firewall |
| Interface |
LAN x 4, WAN x 1 |
| LED Indicators |
POWER, STATUS, WAN, LAN x 4 |
| Power |
AC 9V, 1A |
| Dimensions (app) |
125mm (length) x 85mm (width) x 25mm (height) |
| Net Weight (app) |
125g |
| Operating Temperature |
0°C ~ 45°C |
| Humidity |
5 % ~ 95 % (non-condensing) |
| Storage Temperature |
-20°C ~ 70°C |
| Supported OS |
Windows 98SE, ME, 2000, XP, NT4.0, Mac and Linux |
| Minimum System Requirements |
Pentium compatible processor 200 MHz and above |
| Minimum 32 MB RAM |
| Minimum 30 MB available hard disk space |
| CD-ROM drive |
