GMP120
(*Subject to change without notice.)

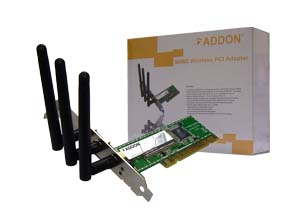

ADDON GMP120 MIMO Wireless LAN PCI Card delivers unrivaled wireless performance for your desktop PC. It offers easy installation and cost effective connection for users. Once connected, access the network with high-speed Internet experience with a faster wireless connection.
Specification:
| Data Transfer Rates |
11Mbps (11b mode), 54Mbps (11g mode), 54Mbps (Packet-OVERDRIVETM Technology ) |
| |
| Standard |
IEEE 802.11g, backward compatible with IEEE 802.11b |
| Operating Radius |
Indoor: 200m, Outdoor: 400m (Range-OVERDRIVETM Technology) |
| Radio Technology |
IEEE 802.11g Orthogonal Frequency Division Multiplexing (OFDM) |
| |
IEEE 802.11b Direct Sequence Spread Spectrum (DSSS) |
| Interface |
32-bit PCI v2.2 |
| Operating Frequency / Channel |
2.412~2.462GHz (FCC, US/Canada) / 11 Channels |
| |
2.412~2.472GHz (ETSI, Europe) / 13 Channels |
| |
2.412~2.484GHz (TELEC, Japan) / 14 Channels |
| Modulation Schemes |
DBPSK/DQPSK/CCK/OFDM |
| Roaming |
Full mobility and seamless roaming from cell to cell |
| Antenna |
3 Dipole Antenna |
| Media Access Protocol |
CSMA/CA with ACK |
| LED Indicators |
Link/ACT |
| Operating Frequency / Channel |
2.412~2.462GHz (FCC, US/Canada) / 11 Channels |
| |
2.412~2.472GHz (ETSI, Europe) / 13 Channels |
| |
2.412~2.484GHz (TELEC, Japan) / 14 Channels |
| Receiver Sensitivity |
54Mbps : -73dBm @ 10% PER, 11Mbps : -85dBm @ 8% PER |
| Transmit Output Power |
11b : 15dBm, 11g : 12dBm (Minimum) |
| Power Consumption |
Rx : 240mA |
| |
Tx : 530mA |
| Working Mode |
Infrastructure, Ad-Hoc |
| Dimensions (app) |
121mm (length) x 44mm (width) (without Antenna) |
| Net Weight (app) |
100g |
| Operating Temperature |
0°C ~40°C |
| Humidity |
5 % ~ 95 % (non-condensing) |
| Storage Temperature |
-10°C ~ 70°C |
| Supported OS |
Windows 98SE, ME, 2000 and XP |
| Regulations |
FCC Part 15.247, ETS 300 328, CE |
