GMK150
(*Subject to change without notice.)

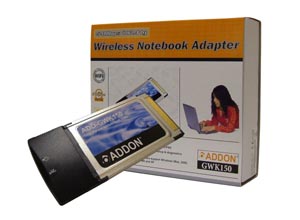

ADDON ADD-GWK150 54 Mbps 802.11g+ Wireless LAN CardBus PC Card is specially
designed for Laptop Computer with Windows 98se and upward. The use of
802.11b/g/g+ wireless technology provides high speed internet connection allows you to surfing the Internet and sharing the data anywhere*
without any limitation. ( * Subjects to the environmental condition. )
Specification:
| Product Description |
ADDON ADD-GWK150 54Mbps 802.11g Wireless LAN CardBus PC Card |
| Device Type |
802.11g Wireless LAN CardBus PC Card |
| Form Factor |
Internal PC Card |
| Interface (Bus) Type |
32-bits CradBus |
| Dimensions (WxDxH) |
118x7x54 (mm) |
| Weight |
40g |
| Data Link Protocol |
11b: Direct Sequence Spread Spectrum (PBCC, CCK, DQPSK) |
| 11g: Orthogonal frequency division multiplexing |
| Data Transfer Rate |
802.11g ( 54 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps) |
| 802.11b (11 Mbps, 5.5 Mbps, 2Mbps, 1 Mbps) |
| System Requirements |
Windows 2000/XP/ME/98SE |
| Manufacturer Warranty |
1 Year |
| Device Type |
802.11g Wireless LAN CardBus PC Card |
| Form Factor |
Internal PC Card |
| Interface (Bus) Type |
32-bits CradBus |
| Width |
118 mm |
| Depth |
7 mm |
| Weight |
40g |
| Connectivity Technology |
IEEE 802.11b/g |
| Data Link Protocol |
11b: Direct Sequence Spread Spectrum (PBCC, CCK, DQPSK) |
| 11g: Orthogonal frequency division multiplexing |
| Data Transfer Rate |
802.11g (54 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps) |
| 802.11b (11 Mbps, 5.5 Mbps, 2Mbps, 1 Mbps) |
| Compliant Standards |
IEEE 802.11b/g |
| OS Required |
Windows 2000/XP/ME/98SE |
|
|
| Max Operating Temperature |
65 °C ambient temperature |
| Min Operating Temperature |
0°C ambient temperature |
| Humidity Range Operating |
95% maximum (non-condensing) |
| Encryption Algorithm |
Hardware-Based Encryption/Decryption |
| Using 64 and 128 Wired-Equivalent Privacy (WEP) Keys, WPA. |
| Frequency Band |
2.412GHz ~ 2.484GHz ISM band (channels 1~14) |
