GMK150v2
(*Subject to change without notice.)

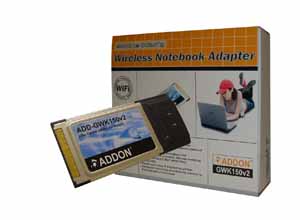

ADDON ADD-GWK150v2 54 Mbps 802.11g Wireless Notebook Adapter is specially
designed for Laptop Computer with Windows 98se and upward. The use of
802.11b/g/g+ wireless technology provides high speed internet connection allows you to surfing the Internet and sharing the data anywhere*
without any limitation. ( * Subjects to the environmental condition. *Specification are subject to change without notices)
Specification:
| Radio Technology |
IEEE 802.11g Orthogonal Frequency Division Multiplexing (OFDM) |
|
IEEE 802.11b Direct Sequence Spread Spectrum (DSSS) |
| Interface |
CardBus Type II specification 32bit data bus |
| Transmission Rate |
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54Mbps (auto sense) |
| Receiver Sensitivity |
54Mbps: Typical - 70dBm @ 10% PER |
|
11Mbps: Typical - 86dBm @ 8% PER |
| Wireless LAN Frequency Range |
2412 ~ 2484 MHz ISM band (channels 1 ~ 14) |
| Modulation Schemes |
DBPSK/DQPSK/CCK/OFDM |
| Media Access Protocol |
CSMA/CA with ACK |
| Transmit Power |
15dBm typically @ 802.11b |
|
13dBm typically @ 802.11g |
| Channel |
USA: 11 |
|
Europe: 13 |
|
Japan: 14 |
| Driver Support |
Windows 98 |
|
Windows ME |
|
Windows 2000 |
|
Windows XP |
| Security |
64/128-bits WEP Encryption |
|
Wireless Fidelity Protected Access (WPA, WPA2, WPA2-PSK, WPA-PSK) |
| Range Coverage |
Indoor: 35 ~ 100 meters (depends on environment) |
|
Outdoor: 100 ~ 300 meters (depends on environment) |
| Antenna |
Internal dual diversity printed antennas |
| Continuous Current Consumption |
370mA typ. for receive mode |
|
470mA typ. for transmit mode |
| Diagnostic LEDs |
Power & Link status |
| Dimensions (W x H x D) |
115 x 54 x 8.7 mm (W x H x D) |
| Operation Temperature |
0 ~ 40 oC |
| Storage Temperature |
-10 ~ 70 oC |
| Humidity |
10% ~ 95% RH, no condensation |
| Certifications |
FCC Part 15.247 for US |
|
ETS 300 328 for Europe |
