GWP110
(*Subject to change without notice.)

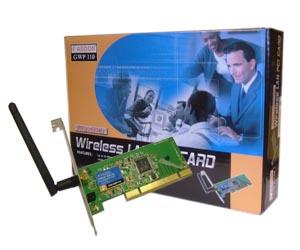

ADDON ADD-GWP110 54 Mbps 802.11g Wireless LAN PCI Card is specially designed for Personal Computer with Windows 98se and upward. The use of 802.11b/g wireless technology provides high speed internet connection with maximum allows you to place your computer anywhere* without worrying about the messy cable. ( * Subjects to the environmental condition. )
Specification:
| Model No |
ADD-GWP110 |
| Product Description |
54 Mbps 802.11g Wireless LAN PCI Card |
| Device Type |
IEEE 802.11g Wireless LAN PCI Card |
| Form Factor |
Internal |
| Interface (Bus) Type |
Internal PCI 2.2 Interface |
| Dimensions (WxDxH) |
135(L)x22(W)x122(H) (mm) |
| Weight |
47g |
| Modulation Technique |
11b: Direct Sequence Spread Spectrum (PBCC, CCK, DQPSK) |
| 11g: Orthogonal frequency division multiplexing |
| Data Transfer Rate |
802.11g (54 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps) |
| Number of Selectable Channels |
USA, Canada:11 channels |
| Europe:13 channels |
| Japan:14 channels |
| Manufacturer Warranty |
1 Year |
| Preamble |
11b: Both Short and Long preamble |
| 11g:long preamble only |
| Security |
Hardware-Based Encryption/Decryption |
| Using 64-,128-, and 256-Bit |
| Wired-Equivalent Privacy( WEP) Keys |
| Media Access Protocol |
CSMA/CA (Collision Avoidance) with ACK |
| EMC Certification |
FCC Part 15.247 in US |
| EN300328 and EN60950-1 (EN301489-17) in Europe |
| Power Requirement |
Operating Voltage:3.3V |
| TX consumption mode:340mA |
| RX consumption mode:300mA |
| Antenna |
Dipole Antenna |
