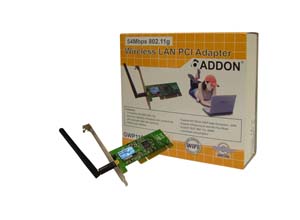

GWP110v3
(*Subject to change without notice.)
GWP110v3 is an IEEE 802.11g compliant wireless LAN PCI Adapter which is backward compatible with IEEE 802.11b, it provides peer-to-peer communication among any compatible wireless users and no Access Point required. GWP110v3 offers easy installation and cost-effective connection for corporate, SOHO and residential users.
GWP110v3 wireless LAN PCI Adapter uses Realtek chipset solution and provides maximum transfer rate up to 54 Mbps. GWP110v3 supports WEP and WPA-PSK high level WLAN security features that guarantee the best security for users.
Specification:
| Data Transfer Rates |
11Mbps (11b mode), 54Mbps (11g mode) |
| Standard |
IEEE 802.11g, backward compatible with IEEE 802.11b |
| Operating Radius |
Indoor: 100m, Outdoor: 300m |
| Radio Technology |
IEEE 802.11g Orthogonal Frequency Division Multiplexing (OFDM) |
| |
| IEEE 802.11b Direct Sequence Spread Spectrum (DSSS) |
| Interface |
32-bit PCI v2.2 |
| Operating Frequency / Channel |
2.412~2.462GHz (FCC, US/Canada) / 11 Channels |
| 2.412~2.472GHz (ETSI, Europe) / 13 Channels |
| 2.412~2.484GHz (TELEC, Japan) / 14 Channels |
| Modulation Schemes |
DBPSK/DQPSK/CCK/OFDM |
| Roaming |
Full mobility and seamless roaming from cell to cell |
| Antenna |
Dipole Antenna |
| Media Access Protocol |
CSMA/CA with ACK |
| LED Indicators |
Link/ACT |
| Operating Frequency / Channel |
2.412~2.462GHz (FCC, US/Canada) / 11 Channels |
| 2.412~2.472GHz (ETSI, Europe) / 13 Channels |
| 2.412~2.484GHz (TELEC, Japan) / 14 Channels |
| Receiver Sensitivity |
54Mbps : -73dBm @ 10% PER, 11Mbps : -85dBm @ 8% PER |
| Transmit Output Power |
11b : 15dBm, 11g : 12dBm (Minimum) |
| Power Consumption |
Rx : 240mA |
| |
| Tx : 530mA |
| Working Mode |
Infrastructure, Ad-Hoc |
| Dimensions (app) |
121mm (length) x 44mm (width) (without Antenna) |
| Net Weight (app) |
80g |
| Operating Temperature |
0°C ~40°C |
| Humidity |
5 % ~ 95 % (non-condensing) |
| Storage Temperature |
-10°C ~ 70°C |
| Supported OS |
Windows 98SE, ME, 2000 and XP |
| Regulations |
FCC Part 15.247, ETS 300 328, CE |
