GWU180M
(*Subject to change without notice.)

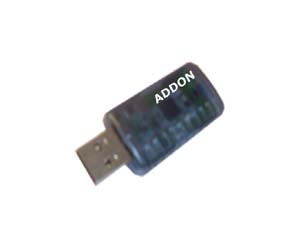

ADDON ADD-GWU180 Mini 54 Mbps 802.11g Wireless LAN USB2.0 Adaptor is specially designed for Laptop Computer and Personal Computer with Windows 98se and upward. There is no need to open up your computer, all you need to do is just simply plug it into your USB socket. The use of 802.11b/g wireless technology provides high speed internet connection allows you to surfing your favourite websites and sharing the large date anywhere* without any limitation. ( * Subjects to the environmental condition. )
Specification:
| Product Name |
ADDON ADD-GWU180 M 54 Mbps 802.11g Wireless LAN USB2.0 Adaptor |
| Standard |
IEEE 802.11b, IEEE 802.11g |
| Frequency Band |
2.4GHz ~ 2.483GHz unlicensed ISM band |
| Spread Spectrum |
IEEE 802.11b : DSSS (Direct Sequence Spread Spectrum) |
| IEEE 802.11g : OFDM ( Orthogonal Frequency Division Multiplexing) |
| Modulation Method |
IEEE 802.11b : DBPSK / DQPSK / CCK |
| IEEE 802.11g : BPSK, QPSK, 16QAM, 64QAM |
| Data Rate |
IEEE 802.11b : 1, 2, 5.5, 11Mbps |
| IEEE 802.11g : 6, 9, 12, 18, 24, 36, 48, 54Mbps |
| Operation Mode |
Ad hoc |
| Infrastructure (Access Points is needed) |
| Transmitter Power |
17 dBm |
| Receive Sensitivity |
Operating at 11Mbps: -80 dBm @ 8% FER |
| Operating Range |
100 - 400m, depending on surrounding environment |
| Antenna |
On board chip antenna |
| Power Consumption |
Transmit : < 350mA. |
| Receive : < 260mA. |
| Security |
64-bit or 128-bit WEP (Wired Equivalent Privacy) /WPA |
| TKIP (Temporal Key Integrity Protocol) |
| I/O Interface |
USB 2.0 |
| LED |
Green LED indicator |
| Operating System |
Windows 98SE, Me, 2000, XP |
| Management |
Windows-based Utility |
| Regulation |
FCC part 15B/C for North America. |
| CE for Europe. |
| Operating Temperature |
0 ~ 55 celsius |
| Storage Temperature |
-20 ~ 70 celsius |
| Humidity |
5 ~ 90% (non-condensing) |
| Size |
58 (L) x 23(W) x 9(H) mm |
| Weight |
9 g |
