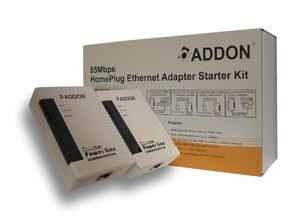

HP0850 Starter Kit
The HP0850 starter kit/twin pack provides convenient powerline access to office/family users by sharing a simple AC power line network. Embedded Homeplug 1.0 Turbo interface enables you to connect one PC ethernet port to another PC’s at other end of power line, and not limited by the wall or layer that block RF wireless communication.(*Subject to change without notice.)
Specification:
| Product Description |
ADDON HP0850 85Mbps HomePlug Ethernet Adapter Starter Kit |
| Box Contains |
HP0850 HomePlug Ethernet Adapter x 2pcs |
| Main Chipset |
Intellon INT5500 + RTL8201 |
| Standard Support |
HomePlug 1.0 (14Mbps) & 1.0 Turbo (85Mbps) |
| Interface |
One Power Line port |
| LED |
Power: Yellow-Green |
| Powerline Link/Act: Yellow-Green |
| Ethernet Link/Act: Yellow-Green |
| Power |
AC 100~240V/ 50~60HZ/ 0.5A |
| Dimension (W x D x L) |
103mm x 71.4mm x 27.8 (45.5 with AC plug) mm. |
| LED |
Power: Yellow-Green |
| On: Power On |
| Off: Power Off |
| Status- |
| Powerline: Yellow-Green |
| Link: On |
| Act: Blink |
| Ethernet: Yellow-Green |
| Link: On |
| Act: Blink |
| Operating |
Operating Temperature: 0~40ºC (32~104ºF) |
| Relative Humidity: 10%~90% non-condensing |
| Storage |
Temperature: -25~75ºC (-13~167ºF) |
| Relevant Humidity: 0%~95% non-condensing |
| Altitude: Sea level to 40,000 feet |
| Certifications |
FCC Part 15, Part B, Class B, CE Class B |
| ICE Class B (option) |
| UL/cUL (option) |
| CB/VDE (option) |
