NWP200

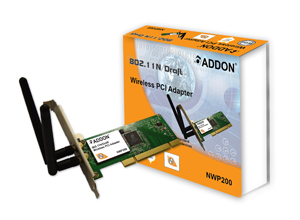

NWP200 is a 11n Wireless PCI Adapter that delivers unrivaled wireless performance for your Desktop PC. It complies with IEEE 802.11n draft 2.0 standard and backward compatible with IEEE 802.11b/g. With this adapter, you can easily upgrade your Desktop PC wireless connectivity. Once connected, access the network with high-speed Internet connection while sharing photos, files, music, video, printers, and storage. Get a better Internet experience with a faster wireless connection so you can enjoy smooth digital phone calls, gaming, downloading, and video streaming. NWP200 also provides peer-to-peer communication among any compatible wireless users and no Access Point required.
NWP200 provides maximum transfer rate up to 150Mbps and supports WEP, WPA, WPA2, WPS, 802.1x high-level WLAN security features that guarantee the best security for users. ( * Subjects to the environmental condition. )
Specification:
| Data Transfer Rates | 11Mbps (11b mode), 54Mbps (11g mode), 150Mbps (11n mode ) |
| Standard | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Operating Radius | Indoor: 100m, Outdoor: 300m |
| Radio Technology | IEEE 802.11g/11n Orthogonal Frequency Division Multiplexing (OFDM) |
| IEEE 802.11b Direct Sequence Spread Spectrum (DSSS) | |
| Interface | 32-bit PCI v2.2 |
| Modulation Schemes | DBPSK/DQPSK/CCK/OFDM |
| Bandwidth | 20MHz / 40MHz |
| Roaming | Full mobility and seamless roaming from cell to cell |
| Antenna | 2 Dipole Antennas |
| Media Access Protocol | CSMA/CA with ACK |
| LED Indicators | ACT |
| Operating Frequency / Channel | Range：2.4GHz~2.4835GHz |
| FCC：1~11 Channels | |
| ETSI：1~13 Channels | |
| Receiver Sensitivity | 11Mbps : -86dBm @ 8% PER |
| 54Mbps : -72dBm @ 10% PER | |
| 11n(20MHz:MCS7) : -70dBm ; 11n(40MHz:MCS7) : -67dBm @ 10% PER | |
| Transmit Output Power | 11b : 18±1dBm, 11g : 15±1dBm , 11n(20M/40M) : 14±1dBm |
| (with antenna) | |
| Power Consumption | Rx : 540mA |
| Tx : 520mA | |
| Working Mode | Infrastructure, Ad-Hoc |
| Dimensions (app) | 126mm (length) x 48mm (width) (without Bracket / Antenna ) |
| Net Weight (app) | 55g |
| Operating Temperature | 0°C ~40°C |
| Humidity | 5 % ~ 95 % (non-condensing) |
| Storage Temperature | 0°C ~ 70°C |
| Supported OS | Windows 2000, XP and Vista (32/64 bit) |
| Regulations | FCC Part 15 B / C, CE |
