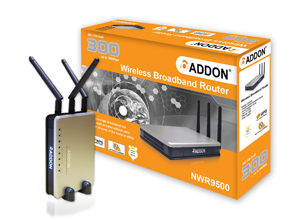

NWR9500
(*Subject to change without notice.)
The NWR9500 is a draft 802.11n/b/g compliant Wireless Broadband Router with 4-port Fast Ethernet Switch. With the advanced MIMO technology, it can support the data transmission rate 6 times more (up to 300Mbps) and the coverage 3 times more than IEEE 802.11b/g devices. NWR9500 Router enables your whole network sharing a high-speed broadband Internet connection. The incredible speed of NWR9500 Router makes it ideal for media-centric applications like streaming video, gaming, and Voice over IP technology, ensure optimum performance and maximum coverage with three external antennas. With NWR9500 Router, you can share a high-speed Internet connection, files, printers, and multi-player games at incredible speeds, without the hassle of stringing wires. NWR9500 Router offers easy configuration for your wireless network in the home and presents wireless network to your home of high functionality, security, and flexibility.
Specification
| Standards |
IEEE 802.11 n/b/g standards compliant |
| Antenna |
3 detachable reverse SMA antennas ( 2dBi) |
| Security |
WEP 64, 128 WPA, WPA2 |
| Frequency Range |
2.400 ~ 2.4835GHz ( subject to local regulations) |
| Number of Selectable Channels |
USA and Canada – 11 Most European countries – 13 Japan – 14 |
| Data Rate |
802.11b: 1, 2, 5,5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps |
| Coverage Area |
Indoor: up to 100M Outdoor: up to 300M |
| Transmit Power (EIRP) |
802.11g : 16 +/- 1.5dBm @ normal temp 802.11b : 19 +/- 1.5dBm @ normal temp 802.11n : 16 +/- 1.5dBm @ normal temp |
| Receiver Sensitivity |
11Mbps @ -86dBm 54Mbps @ -75dBm Typtical 300Mbps @ -71dBm |
| Physical Specifications |
Weight : TBD Dimension : 128(L)* 89(W)* 27(H) mm |
| Environment Specifications |
Operating Temp : 0°C to 55°C Storage Temp : -20°C to 70°C Operating Humidity : 10% to 90% Non-Condensing Storage Humidity : 5% to 90% Non-Condensing |
| Power Requirement |
AC adapter Input 110~240V , DC Output 12V/1A |
| Certifications: |
FCC, CE |
| Supported OS |
Windows 98SE, ME, 2000, XP, Vista, Mac |
