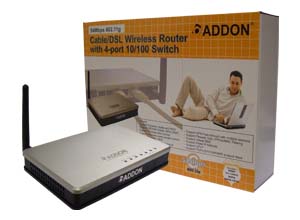

WBR9200
This Wireless Router is an IEEE 802.11g compliant wireless router with a built in four-port fast Ethernet switch. It brings the latest wireless technology with high speed uo to 54Mbps and is backwards compatible with all the existing 802.11b products. This high-performance IEEE 802.11g standards-based router connects all of your PC's equipped with wireless PC cards, while an integrated 4-port fast Ethernet switch connects you devices that need Ethernet wiring. It's the easiest way to share and extend your high-speed DSL/cable modem Internet connection, either with or without wires. (*Subject to change without notice.)
Specification:
| Specification |
|
|
|
|
| Standard |
IEEE 802.11b, Wi-Fi compliant/IEEE 802.11g standard |
| Antenna |
Single Non-Detachable Dipole Antenna(RP-SMA 2dBi) |
| Frequency Range |
2.412GHz-2.4835GHz |
|
| Number of Selectable Channels |
USA, Canada: 11 channels |
|
|
Europe: 13 channels |
|
|
|
Japan: 14 channels |
|
|
| Modulation Technology |
802.11b: Direct Sequence Spread Spectrum (PBCC, CCK, DQPSK, DBPSK) |
|
802.11g: Orthogonal frequency division multiplexing |
| Data Rate |
802.11b(11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps) |
|
802.11g(54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps) |
| Coverage Area |
Indoor: 100m |
|
|
|
Outdoor: 300 |
|
|
| Operation Temperature |
0 ~ 40℃ |
|
|
|
| Storage Temperature |
-10 ~ 70℃ |
|
|
| Transmit Power |
OFDM: 14.2 dBm (54Mbps) |
|
|
CCK : 18.2 dBm (11Mbps) |
|
| Receiver Sensitivity |
-80dBm (11Mbps), -66dBm(54Mbps) |
| Power Requirement |
12V / 800mA |
|
|
| Physical Specifications |
Weight：235 |
|
|
|
141mm(W)*100mm(D)*27mm(H) |
| EMC Certification |
FCC/CE |
|
|
|
| LED Indicator (7 LEDs) |
Power：Green / Power on |
|
|
Internet : Green / Internet Link/Act |
|
Wireless Link/act：Green On/Blink |
|
LAN Link/Act：Green On/Blink |
|
